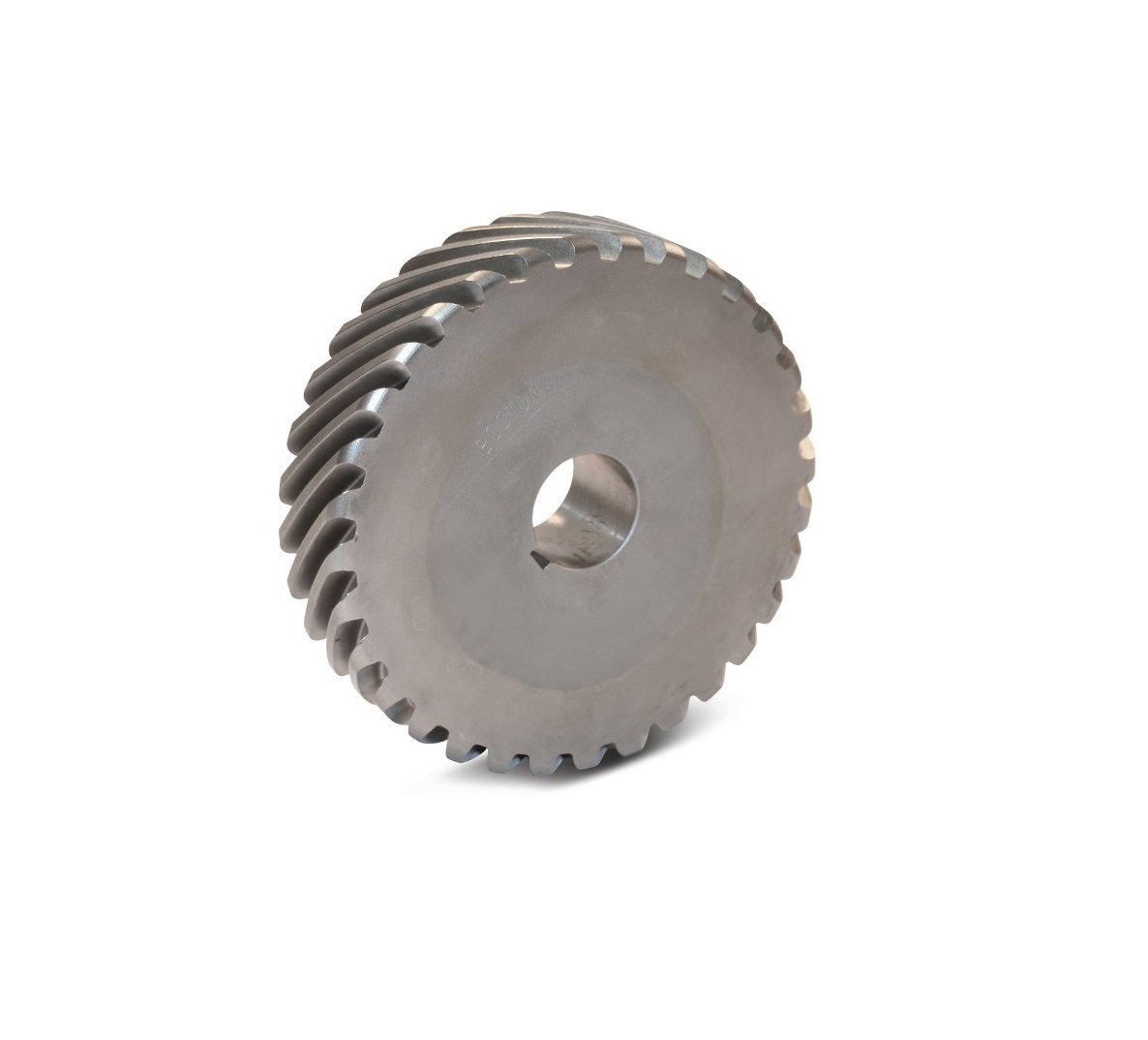

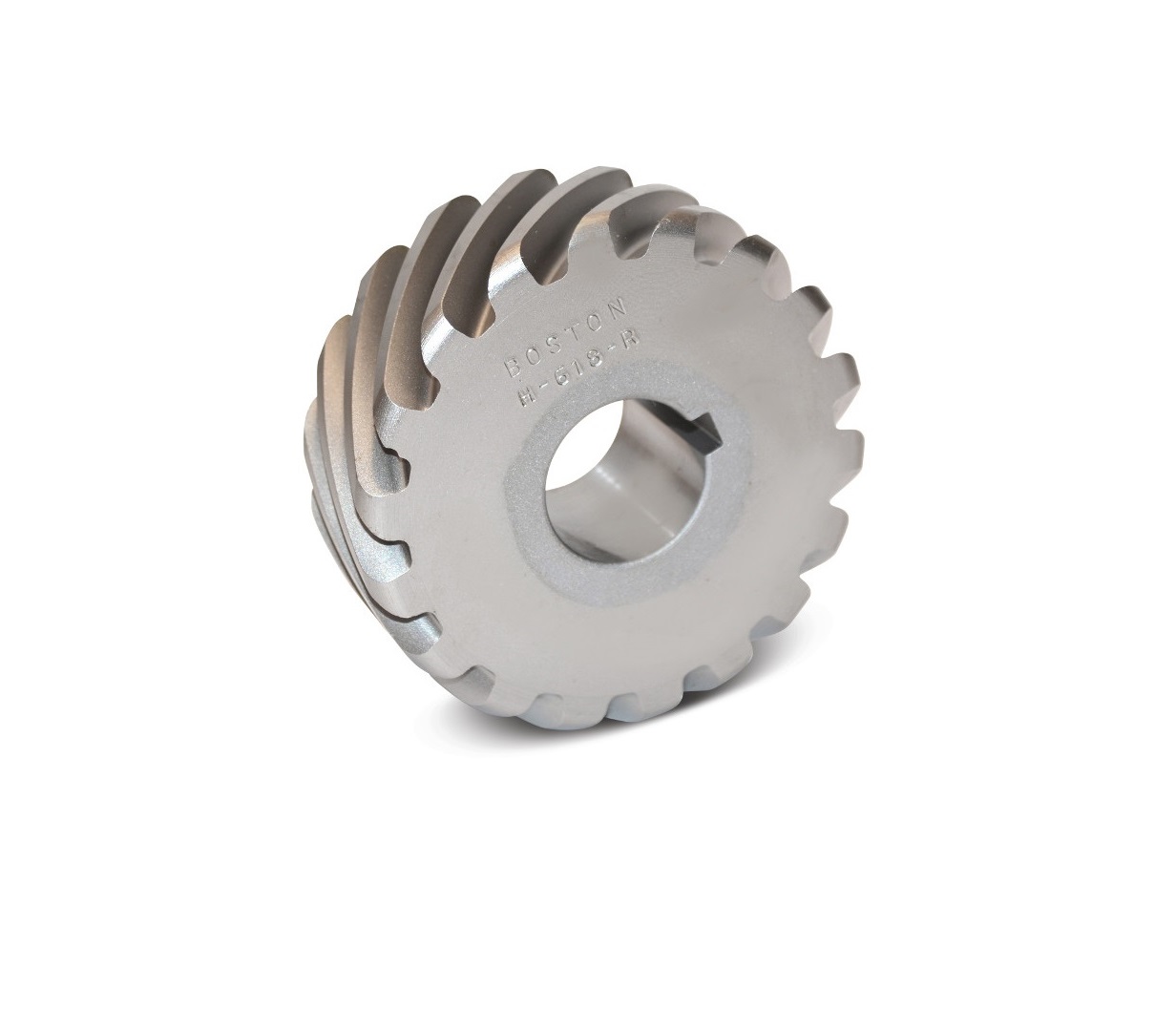

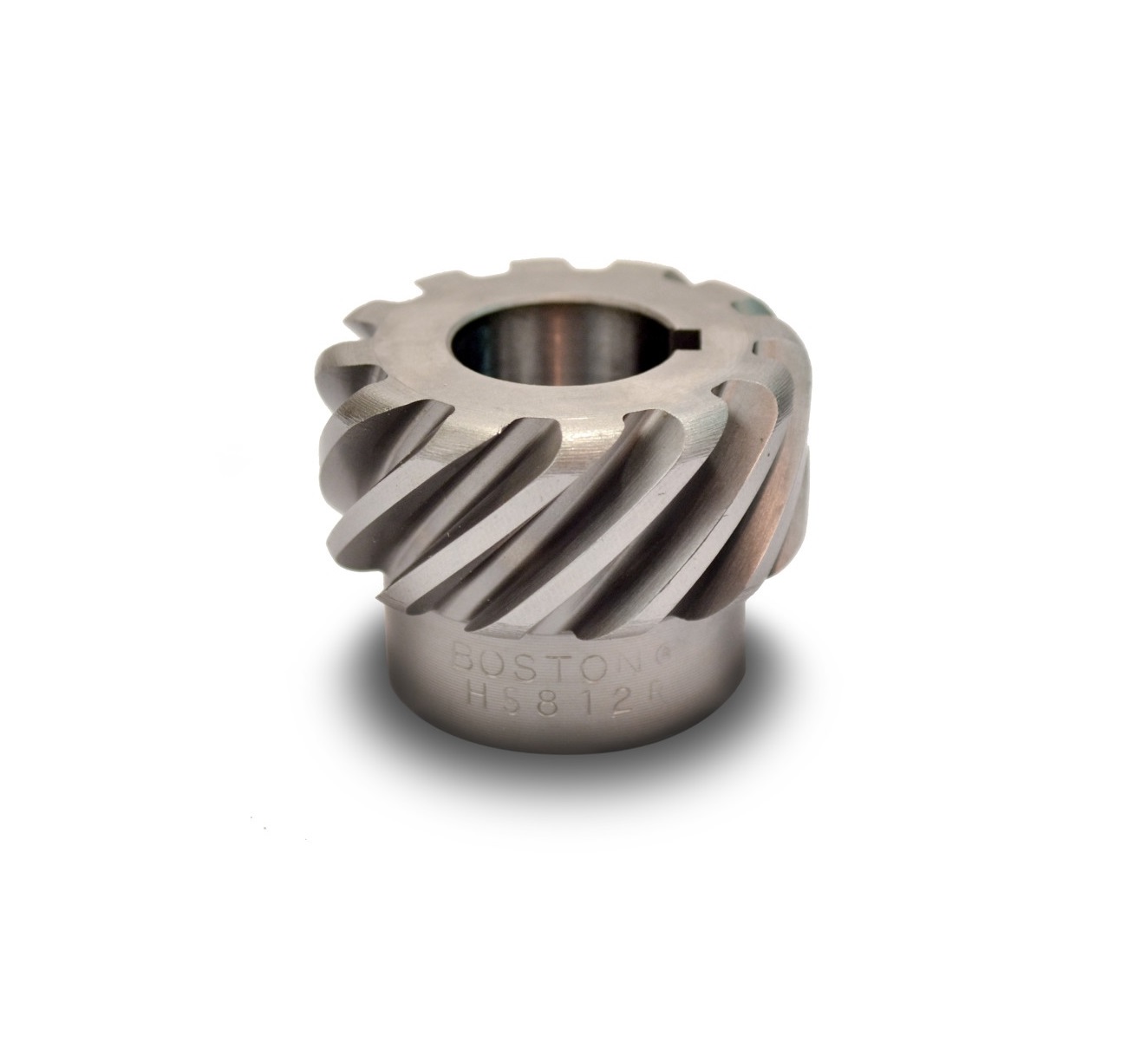

Boston Gear Helical Gears
Boston Gear Helical Gears are manufactured in both right-handed and left-handed configurations, available in transverse Diametral Pitch 6TDP to 24TD.
They are designed with an industry-standard 45° helix angle, which allows them to transmit motion and power between non-intersecting shafts that are parallel or at a 90° angle to each other. Helical gears with opposite-hand helix angles are required for parallel shaft operation.
BG helical gears ensure great tooth strength due to the helical wrap around, and an increased contact ratio due to the axial tooth overlap.
We work closely with the leading manufacturers to provide gearing solutions to meet the requirements of your unique applications.
If you have any questions, write us via live chat (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.
or
Requesting ... File size should not exceed 20 MB.
Boston Gear Helical Gears
Boston Gear Helical Gears are manufactured in both right-handed and left-handed configurations, available in transverse Diametral Pitch 6TDP to 24TD.
They are designed with an industry-standard 45° helix angle, which allows them to transmit motion and power between non-intersecting shafts that are parallel or at a 90° angle to each other. Helical gears with opposite-hand helix angles are required for parallel shaft operation.
BG helical gears ensure great tooth strength due to the helical wrap around, and an increased contact ratio due to the axial tooth overlap.
We work closely with the leading manufacturers to provide gearing solutions to meet the requirements of your unique applications.
If you have any questions, write us via live chat (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.
|
MPN
|
pitch diameter
|
diameter pitch
|
number of teeth
|
bore size
|
material
|
Price
|
Actions
|
|---|---|---|---|---|---|---|---|
| H2408R | 0.33 in | 24 | 8 | 0.19 in | Steel, Hardened, All | Request a quote | |
|
H2408R RFQ
H2408R - 24DP, 45 Helix, 14.5 PA, 8 Teeth, RH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2408R
|
|||||||
| H2008L | 0.40 in | 20 | 8 | 0.25 in | Steel, Hardened, All | Request a quote | |
|
H2008L RFQ
H2008L - 20DP, 45 Helix, 14.5 PA, 8 Teeth, LH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2008L
|
|||||||
| H2008R | 0.40 in | 20 | 8 | 0.25 in | Steel, Hardened, All | Request a quote | |
|
H2008R RFQ
H2008R - 20DP, 45 Helix, 14.5 PA, 8 Teeth, RH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2008R
|
|||||||
| H2410L | 0.42 in | 24 | 10 | 0.25 in | Steel, Hardened, All | Request a quote | |
|
H2410L RFQ
H2410L - 24DP, 45 Helix, 14.5 PA, 10 Teeth, LH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2410L
|
|||||||
| H2410R | 0.42 in | 24 | 10 | 0.25 in | Steel, Hardened, All | Request a quote | |
|
H2410R RFQ
H2410R - 24DP, 45 Helix, 14.5 PA, 10 Teeth, RH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2410R
|
|||||||
| H2412L | 0.50 in | 24 | 12 | 0.25 in | Steel, Hardened, All | Request a quote | |
|
H2412L RFQ
H2412L - 24DP, 45 Helix, 14.5 PA, 12 Teeth, LH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2412L
|
|||||||
| H2412R | 0.50 in | 24 | 12 | 0.25 in | Steel, Hardened, All | Request a quote | |
|
H2412R RFQ
H2412R - 24DP, 45 Helix, 14.5 PA, 12 Teeth, RH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2412R
|
|||||||
| H2010L | 0.50 in | 20 | 10 | 0.31 in | Steel, Hardened, All | Request a quote | |
|
H2010L RFQ
H2010L - 20DP, 45 Helix, 14.5 PA, 10 Teeth, LH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H2010L
|
|||||||
| H2010R | 0.50 in | 20 | 10 | 0.31 in | Steel, Hardened, All | Request a quote | |
|
H2010R RFQ
H2010R - 20DP, 45 Helix, 14.5 PA, 10 Teeth, RH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H2010R
|
|||||||
| H2012L | 0.60 in | 20 | 12 | 0.38 in | Steel, Hardened, All | Request a quote | |
|
H2012L RFQ
H2012L - 20DP, 45 Helix, 14.5 PA, 12 Teeth, LH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H2012L
|
|||||||
| H2012R | 0.60 in | 20 | 12 | 0.38 in | Steel, Hardened, All | Request a quote | |
|
H2012R RFQ
H2012R - 20DP, 45 Helix, 14.5 PA, 12 Teeth, RH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H2012R
|
|||||||
| H2415L | 0.63 in | 24 | 15 | 0.38 in | Steel, Hardened, All | Request a quote | |
|
H2415L RFQ
H2415L - 24DP, 45 Helix, 14.5 PA, 15 Teeth, LH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2415L
|
|||||||
| H2415R | 0.63 in | 24 | 15 | 0.38 in | Steel, Hardened, All | Request a quote | |
|
H2415R RFQ
H2415R - 24DP, 45 Helix, 14.5 PA, 15 Teeth, RH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2415R
|
|||||||
| H2418L | 0.75 in | 24 | 18 | 0.38 in | Steel, Hardened, All | Request a quote | |
|
H2418L RFQ
H2418L - 24DP, 45 Helix, 14.5 PA, 18 Teeth, LH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2418L
|
|||||||
| H2418R | 0.75 in | 24 | 18 | 0.38 in | Steel, Hardened, All | Request a quote | |
|
H2418R RFQ
H2418R - 24DP, 45 Helix, 14.5 PA, 18 Teeth, RH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2418R
|
|||||||
| H1612L | 0.75 in | 16 | 12 | 0.38 in | Steel, Hardened, All | Request a quote | |
|
H1612L RFQ
H1612L - 16DP, 45 Helix, 14.5 PA, 12 Teeth, LH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H1612L
|
|||||||
| H1612R | 0.75 in | 16 | 12 | 0.38 in | Steel, Hardened, All | Request a quote | |
|
H1612R RFQ
H1612R - 16DP, 45 Helix, 14.5 PA, 12 Teeth, RH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H1612R
|
|||||||
| H2015L | 0.75 in | 20 | 15 | 0.44 in | Steel, Hardened, All | Request a quote | |
|
H2015L RFQ
H2015L - 20DP, 45 Helix, 14.5 PA, 15 Teeth, LH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H2015L
|
|||||||
| H2015R | 0.75 in | 20 | 15 | 0.44 in | Steel, Hardened, All | Request a quote | |
|
H2015R RFQ
H2015R - 20DP, 45 Helix, 14.5 PA, 15 Teeth, RH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H2015R
|
|||||||
| H1008L | 0.80 in | 10 | 8 | 0.38 in | Steel, Hardened, All | Request a quote | |
|
H1008L RFQ
H1008L - 10DP, 45 Helix, 14.5 PA, 8 Teeth, LH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H1008L
|
|||||||
| H1008R | 0.80 in | 10 | 8 | 0.38 in | Steel, Hardened, All | Request a quote | |
|
H1008R RFQ
H1008R - 10DP, 45 Helix, 14.5 PA, 8 Teeth, RH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H1008R
|
|||||||
| H2420L | 0.83 in | 24 | 20 | 0.50 in | Steel, Hardened, All | Request a quote | |
|
H2420L RFQ
H2420L - 24DP, 45 Helix, 14.5 PA, 20 Teeth, LH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2420L
|
|||||||
| H2420R | 0.83 in | 24 | 20 | 0.50 in | Steel, Hardened, All | Request a quote | |
|
H2420R RFQ
H2420R - 24DP, 45 Helix, 14.5 PA, 20 Teeth, RH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2420R
|
|||||||
| H2424L | 1.00 in | 24 | 24 | 0.50 in | Steel, Hardened, All | Request a quote | |
|
H2424L RFQ
H2424L - 24DP, 45 Helix, 14.5 PA, 24 Teeth, LH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2424L
|
|||||||
| H2424R | 1.00 in | 24 | 24 | 0.50 in | Steel, Hardened, All | Request a quote | |
|
H2424R RFQ
H2424R - 24DP, 45 Helix, 14.5 PA, 24 Teeth, RH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2424R
|
|||||||
| H808L | 1.00 in | 8 | 8 | 0.50 in | Steel, Hardened, All | Request a quote | |
|
H808L RFQ
H808L - 8DP, 45 Helix, 14.5 PA, 8 Teeth, LH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H808L
|
|||||||
| H808R | 1.00 in | 8 | 8 | 0.50 in | Steel, Hardened, All | Request a quote | |
|
H808R RFQ
H808R - 8DP, 45 Helix, 14.5 PA, 8 Teeth, RH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H808R
|
|||||||
| HS808L | 1.00 in | 8 | 8 | 0.50 in | Steel, Hardened, All | Request a quote | |
|
HS808L RFQ
HS808L - 8DP, 45 Helix, 14.5 PA, 8 Teeth, LH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
HS808L
|
|||||||
| HS808R | 1.00 in | 8 | 8 | 0.50 in | Steel, Hardened, All | Request a quote | |
|
HS808R RFQ
HS808R - 8DP, 45 Helix, 14.5 PA, 8 Teeth, RH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
HS808R
|
|||||||
| H1010L | 1.00 in | 10 | 10 | 0.50 in | Steel, Hardened, All | Request a quote | |
|
H1010L RFQ
H1010L - 10DP, 45 Helix, 14.5 PA, 10 Teeth, LH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H1010L
|
|||||||
| H1010R | 1.00 in | 10 | 10 | 0.50 in | Steel, Hardened, All | Request a quote | |
|
H1010R RFQ
H1010R - 10DP, 45 Helix, 14.5 PA, 10 Teeth, RH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H1010R
|
|||||||
| H1212L | 1.00 in | 12 | 12 | 0.63 in | Steel, Hardened, All | Request a quote | |
|
H1212L RFQ
H1212L - 12DP, 45 Helix, 14.5 PA, 12 Teeth, LH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H1212L
|
|||||||
| H1212R | 1.00 in | 12 | 12 | 0.63 in | Steel, Hardened, All | Request a quote | |
|
H1212R RFQ
H1212R - 12DP, 45 Helix, 14.5 PA, 12 Teeth, RH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H1212R
|
|||||||
| H1616L | 1.00 in | 16 | 16 | 0.50 in | Steel, Hardened, All | Request a quote | |
|
H1616L RFQ
H1616L - 16DP, 45 Helix, 14.5 PA, 16 Teeth, LH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H1616L
|
|||||||
| H1616R | 1.00 in | 16 | 16 | 0.50 in | Steel, Hardened, All | Request a quote | |
|
H1616R RFQ
H1616R - 16DP, 45 Helix, 14.5 PA, 16 Teeth, RH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H1616R
|
|||||||
| H2020L | 1.00 in | 20 | 20 | 0.50 in | Steel, Hardened, All | Request a quote | |
|
H2020L RFQ
H2020L - 20DP, 45 Helix, 14.5 PA, 20 Teeth, LH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H2020L
|
|||||||
| H2020R | 1.00 in | 20 | 20 | 0.50 in | Steel, Hardened, All | Request a quote | |
|
H2020R RFQ
H2020R - 20DP, 45 Helix, 14.5 PA, 20 Teeth, RH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H2020R
|
|||||||
| H1012L | 1.20 in | 12 | 12 | 0.63 in | Steel, Hardened, All | Request a quote | |
|
H1012L RFQ
H1012L - 12DP, 45 Helix, 14.5 PA, 12 Teeth, LH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H1012L
|
|||||||
| H1012R | 1.20 in | 12 | 12 | 0.63 in | Steel, Hardened, All | Request a quote | |
|
H1012R RFQ
H1012R - 12DP, 45 Helix, 14.5 PA, 12 Teeth, RH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H1012R
|
|||||||
| H2430L | 1.25 in | 24 | 30 | 0.63 in | Steel, Hardened, All | Request a quote | |
|
H2430L RFQ
H2430L - 24DP, 45 Helix, 14.5 PA, 30 Teeth, LH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2430L
|
|||||||
| H2430R | 1.25 in | 24 | 30 | 0.63 in | Steel, Hardened, All | Request a quote | |
|
H2430R RFQ
H2430R - 24DP, 45 Helix, 14.5 PA, 30 Teeth, RH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H2430R
|
|||||||
| H810L | 1.25 in | 8 | 10 | 0.63 in | Steel, Hardened, All | Request a quote | |
|
H810L RFQ
H810L - 8DP, 45 Helix, 14.5 PA, 10 Teeth, LH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H810L
|
|||||||
| H810R | 1.25 in | 8 | 10 | 0.63 in | Steel, Hardened, All | Request a quote | |
|
H810R RFQ
H810R - 8DP, 45 Helix, 14.5 PA, 10 Teeth, RH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
H810R
|
|||||||
| HS810L | 1.25 in | 8 | 10 | 0.63 in | Steel, Hardened, All | Request a quote | |
|
HS810L RFQ
HS810L - 8DP, 45 Helix, 14.5 PA, 10 Teeth, LH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
HS810L
|
|||||||
| HS810R | 1.25 in | 8 | 10 | 0.63 in | Steel, Hardened, All | Request a quote | |
|
HS810R RFQ
HS810R - 8DP, 45 Helix, 14.5 PA, 10 Teeth, RH, All Steel Hardened Helical Gear by Boston Gear
Brand:
Boston Gear
MPN:
HS810R
|
|||||||
| H1215L | 1.25 in | 12 | 15 | 0.63 in | Steel, Hardened, All | Request a quote | |
|
H1215L RFQ
H1215L - 12DP, 45 Helix, 14.5 PA, 15 Teeth, LH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H1215L
|
|||||||
| H1215R | 1.25 in | 12 | 12 | 0.63 in | Steel, Hardened, All | Request a quote | |
|
H1215R RFQ
H1215R - 12DP, 45 Helix, 14.5 PA, 12 Teeth, RH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H1215R
|
|||||||
| H1620L | 1.25 in | 20 | 20 | 0.50 in | Steel, Hardened, All | Request a quote | |
|
H1620L RFQ
H1620L - 20DP, 45 Helix, 14.5 PA, 20 Teeth, LH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H1620L
|
|||||||
| H2025L | 1.25 in | 24 | 25 | 0.63 in | Steel, Hardened, All | Request a quote | |
|
H2025L RFQ
H2025L - 24DP, 45 Helix, 14.5 PA, 25 Teeth, LH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H2025L
|
|||||||
| H2025R | 1.25 in | 24 | 20 | 0.63 in | Steel, Hardened, All | Request a quote | |
|
H2025R RFQ
H2025R - 24DP, 45 Helix, 14.5 PA, 20 Teeth, RH, All Steel Hardened Helical Gear by Boston Gea
Brand:
Boston Gear
MPN:
H2025R
|
|||||||
