Douglas Electromagnetic Separators
Douglas Electromagnetic separators are suitable for applications that require a stronger magnetic field due to the suspension height, belt speed, or burden depth. They are widely used for the protection of downstream equipment in conveyor systems, including crushers and bark hogs.
Electromagnetic separators are oil-filled and utilize state-of-the-art anodized aluminum coils, expansion tanks, and solid core construction for maximum performance and long service life.
We offer Manual and Self-Cleaning Electromagnetic Separators that come with a heavy-duty rubber belt, meaning even those large pieces of metal will not be capable of causing damage.
They are used in a wide range of industrial automation systems and come in all shapes and sizes. In pharmaceutical processing, the final product usually gets a magnetic sweep to ensure no iron particles remain from the machinery. They have an actual application in the mining industry used to lift and separate ferrous metals away from the materials being handled by an industrial conveyor system.
Sizes Available
-
18” to 72” belt widths
-
Up to 26” suspension heights
-
Custom sizes and application-specific designs

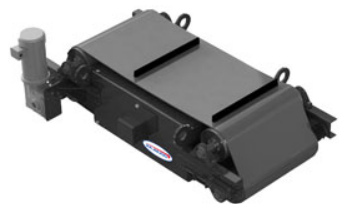

Self Cleaning Electromagnetic Separators (ESH)
-
Heavy grade structural steel frame complete with CEMA class lagged crown face head pulley, tail pulley, and Slide Tube belt take-ups
-
CLASS II shaft mount gear drive with TEFC motor, custom drives available
-
Automatically discharges tramp metal away from the conveyor
-
Heavy-duty rubber cover belt standard with hot vulcanized cleats

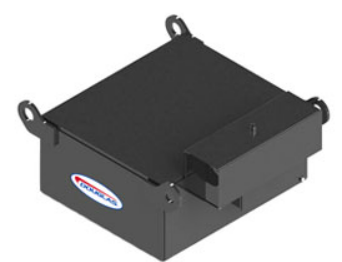

Manual Cleaning Electromagnetic Separators (EMH)
-
Manual cleaning of ferrous metal required
-
Power off for easy cleaning
HVH Industrial Solutions is a distributor of Douglas Manufacturing.
We work closely with the Douglas engineering team to provide superior customer service and engineering support.
