Italvibras Flanged Electric Vibrators MVB

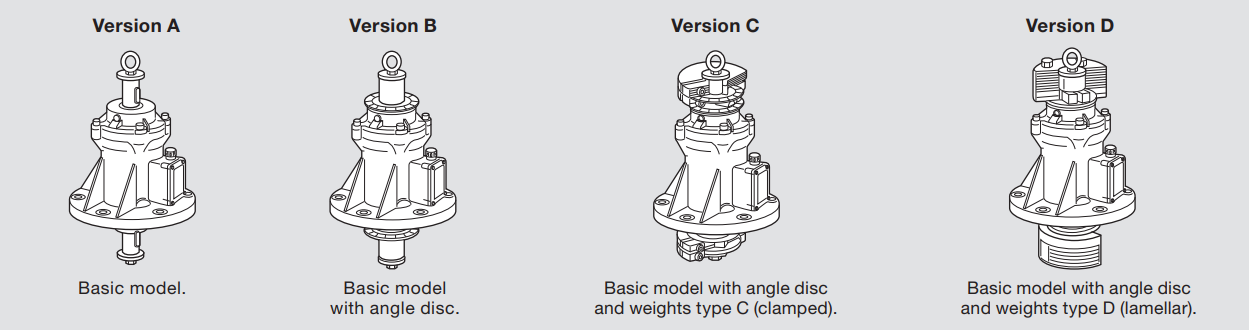

The MVB series is a Top Mounting Flange Electric Vibrator, featuring a lateral flange and the shaft projecting from both sides. They are typically used in circular screens and medium-sized and large sieves which can be supplied in 4 different options: A, B, C, and D, depending on the type of eccentric weights supplied to be assembled by the user.

The centrifugal force is 3300 Ibs (14.7kN), adjustable with a variety of eccentric weights. The size 50 complies with the most recent IEC and EN international standards for use in atmospheres with potentially explosive dust particles.

Power Supply

Three-phase voltage from 220V to 690V, 50Hz or 60Hz; variable frequency (in the presence of PTC thermistor) from 20Hz to the base frequency with constant torque load profile type PWM.

Quality Controls

The components that affect protection are 100% accurately controlled and recorded.

Electric Motor

The electric motor is a three-phase asynchronous type designed for maximum starting torques and torque curves specific to the requirements of vibrating machines. Insulated windings using a “drop by drop” trickle system with class H resin. The rotor is die-cast aluminum.

Temperature Class

Dust: 150°C

Gas: T3 (200°C or T4 (135°C)

General Catalog of Italvibras Electric Vibrators
