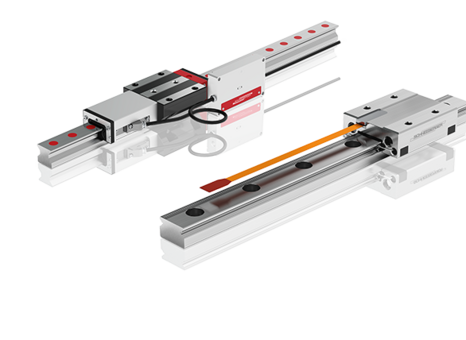

Linear Bearing with Integrated Measuring System

The precise linear motion requires accurate distance measurement. With its integrated distance measuring systems for various applications, SCHNEEBERGER offers cost-effective solutions. All designs are distinguished because they can change the reading head with minimal assembly effort. The maximum one-piece rail length is 6 meters. The systems have been specially developed for the harsh environment in machine tools. The AMSA length measuring system version has an analog signal interface, and AMSD has a digital interface. Both systems are offered for the ball and roller guideways.

An absolute signal interface is available for the AMSABS version. Several MONORAILS can be joined together, as required. Then the AMSA 3L product comes into play. This combination results from the highly accurate construction of the rails in terms of mechanics and metrology. The unique design of the rail joints, in combination with the AMSA 3L reading head, allows joints to be traversed and measurement axes of any length to be set up. In contrast, the strengths of the MINISCALE PLUS lie in guiding and measuring in the smallest of spaces. This product is designed for high speed and acceleration in the work process, as practiced in high-tech industries.
