Linear Guidance with Long Stroke

The linear guidance with a long stroke from Schneeberger consists of four main types.

Linear bearings with rollers – MONORAIL MR

High rigidity, great dynamic and static load carrying capacity, outstanding running smoothness, and the total enclosure of the carriage are the main features of the MONORAIL MR guideway.

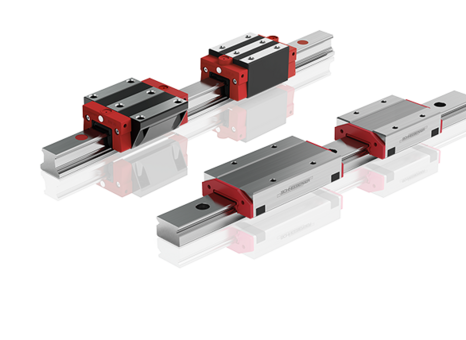

Linear bearings with balls – MINI RAIL and MONORAIL BM

The MINI RAIL precision miniature profiled linear guideway is suitable for industrial and laboratory automation. BM ball guideways are reliable components for the entire range of industrial applications. In applications such as machines for foodstuffs, medical technology, cleanrooms, or vacuum applications, MONORAIL BM WR/SR products ensure that the operation of linear axes is clean, accurate, long-term, and free of problems.

Linear bearing with integrated rack and pinion drive – MONORAIL BZ

MONORAIL BZ systems from SCHNEEBERGER are high-precision linear bearing systems with integral rack drive, based on the company's proven MONORAIL BM profile guideways with balls. The benefits resulting from integrating a profile guideway and an extremely precise rack drive are mainly used in the handling and automation industries, in laser and waterjet cutting tools, and in woodworking machines.

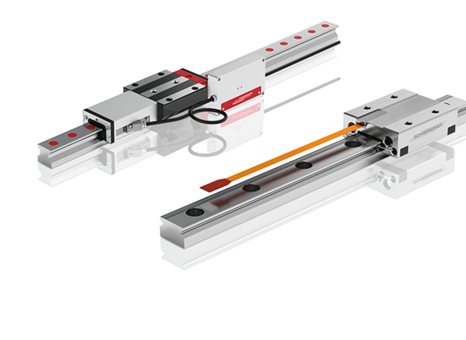

Linear bearing with an integrated measuring system

The products MONORAIL AMSD 4B, AMSA 4B, AMSD 3B, AMSA 3B, and AMSA 3L are integrated magneto-resistive linear measuring systems with rollers or balls, which are available in an analog or digital version.

The MONORAIL AMSABS product is also an integrated magneto-resistive measuring system. The AMSABS 3B is based on a roller-profiled linear guideway, and the AMSABS 4B is on a ball-profiled linear guideway. The MONORAIL AMSABS 3L product is an integrated measuring system for the absolute distance measurement system.

The MSQscale is an optical, incremental measuring system comprising the MINI SLIDE MSQ guide and additional components. The MINISCALE PLUS distance measuring system is based on the MINI RAIL miniature guideway and was developed for high speeds and accelerations in the work process.
