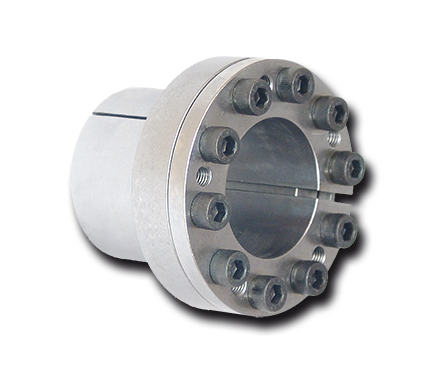

Ringspann Locking Elements RLK 110
Radial flat height RLK 110 series of locking elements ensure the backlash-free connection of a screw gear and simultaneous coupling of the divided drive shaft of a continuous heating furnace. These locking assemblies have no axial displacement between hub and shaft during clamping procedure due to fixed backstop point.
HVH Industrial works with manufacturers' specialized engineering teams to meet our customer's requirements and the highest quality standards.
If you have any questions, write us via live chat (one of our team members will answer your questions), call, or send us a quote request. The HVH team is always ready to help you.
or
Requesting ... File size should not exceed 20 MB.
Ringspann Locking Elements RLK 110
Radial flat height RLK 110 series of locking elements ensure the backlash-free connection of a screw gear and simultaneous coupling of the divided drive shaft of a continuous heating furnace. These locking assemblies have no axial displacement between hub and shaft during clamping procedure due to fixed backstop point.
HVH Industrial works with manufacturers' specialized engineering teams to meet our customer's requirements and the highest quality standards.
If you have any questions, write us via live chat (one of our team members will answer your questions), call, or send us a quote request. The HVH team is always ready to help you.
|
MPN
|
d mm
|
b mm
|
d1 mm
|
type
|
Brand
|
Price
|
Actions
|
|---|---|---|---|---|---|---|---|
| 4206-006001-000000 | 14 | 24 | 25 | RLK 110-6 x 14 | RINGSPANN | Request a quote | |
|
4206-006001-000000 RFQ
|
|||||||
| 4206-008001-000000 | 15 | 29 | 27 | RLK 110-8 x 15 | RINGSPANN | Request a quote | |
|
4206-008001-000000 RFQ
|
|||||||
| 4206-009001-000000 | 16 | 30 | 28 | RLK 110-9 x 16 | RINGSPANN | Request a quote | |
|
4206-009001-000000 RFQ
|
|||||||
| 4206-010001-000000 | 16 | 30 | 29 | RLK 110-10 x 16 | RINGSPANN | Request a quote | |
|
4206-010001-000000 RFQ
|
|||||||
| 4206-011001-000000 | 18 | 30 | 32 | RLK 110-11 x 18 | RINGSPANN | Request a quote | |
|
4206-011001-000000 RFQ
|
|||||||
| 4206-012001-000000 | 18 | 30 | 32 | RLK 110-12 x 18 | RINGSPANN | Request a quote | |
|
4206-012001-000000 RFQ
|
|||||||
| 4206-014001-000000 | 23 | 30 | 38 | RLK 110-14 x 23 | RINGSPANN | Request a quote | |
|
4206-014001-000000 RFQ
|
|||||||
| 4206-015001-000000 | 24 | 42 | 44 | RLK 110-15 x 24 | RINGSPANN | Request a quote | |
|
4206-015001-000000 RFQ
|
|||||||
| 4206-016001-000000 | 24 | 42 | 44 | RLK 110-16 x 24 | RINGSPANN | Request a quote | |
|
4206-016001-000000 RFQ
|
|||||||
| 4206-017001-000000 | 26 | 44 | 47 | RLK 110-17 x 26 | RINGSPANN | Request a quote | |
|
4206-017001-000000 RFQ
|
|||||||
| 4206-018001-000000 | 26 | 44 | 47 | RLK 110-18 x 26 | RINGSPANN | Request a quote | |
|
4206-018001-000000 RFQ
|
|||||||
| 4206-019001-000000 | 27 | 44 | 48 | RLK 110-19 x 27 | RINGSPANN | Request a quote | |
|
4206-019001-000000 RFQ
|
|||||||
| 4206-020001-000000 | 28 | 44 | 49 | RLK 110-20 x 28 | RINGSPANN | Request a quote | |
|
4206-020001-000000 RFQ
|
|||||||
| 4206-022001-000000 | 32 | 51 | 54 | RLK 110-22 x 32 | RINGSPANN | Request a quote | |
|
4206-022001-000000 RFQ
|
|||||||
| 4206-024001-000000 | 34 | 51 | 56 | RLK 110-24 x 34 | RINGSPANN | Request a quote | |
|
4206-024001-000000 RFQ
|
|||||||
| 4206-025001-000000 | 34 | 51 | 56 | RLK 110-25 x 34 | RINGSPANN | Request a quote | |
|
4206-025001-000000 RFQ
|
|||||||
| 4206-028001-000000 | 39 | 51 | 61 | RLK 110-28 x 39 | RINGSPANN | Request a quote | |
|
4206-028001-000000 RFQ
|
|||||||
| 4206-030001-000000 | 41 | 51 | 62 | RLK 110-30 x 41 | RINGSPANN | Request a quote | |
|
4206-030001-000000 RFQ
|
|||||||
| 4206-032001-000000 | 43 | 51 | 65 | RLK 110-32 x 43 | RINGSPANN | Request a quote | |
|
4206-032001-000000 RFQ
|
|||||||
| 4206-035001-000000 | 47 | 56 | 69 | RLK 110-35 x 47 | RINGSPANN | Request a quote | |
|
4206-035001-000000 RFQ
|
|||||||
| 4206-038001-000000 | 50 | 56 | 72 | RLK 110-38 x 50 | RINGSPANN | Request a quote | |
|
4206-038001-000000 RFQ
|
|||||||
| 4206-040001-000000 | 53 | 56 | 75 | RLK 110-40 x 53 | RINGSPANN | Request a quote | |
|
4206-040001-000000 RFQ
|
|||||||
| 4206-042001-000000 | 55 | 65 | 78 | RLK 110-42 x 55 | RINGSPANN | Request a quote | |
|
4206-042001-000000 RFQ
|
|||||||
| 4206-045001-000000 | 59 | 73 | 85 | RLK 110-45 x 59 | RINGSPANN | Request a quote | |
|
4206-045001-000000 RFQ
|
|||||||
| 4206-048001-000000 | 62 | 78 | 87 | RLK 110-48 x 62 | RINGSPANN | Request a quote | |
|
4206-048001-000000 RFQ
|
|||||||
| 4206-050001-000000 | 65 | 78 | 92 | RLK 110-50 x 65 | RINGSPANN | Request a quote | |
|
4206-050001-000000 RFQ
|
|||||||
| 4206-055001-000000 | 71 | 83 | 98 | RLK 110-55 x 71 | RINGSPANN | Request a quote | |
|
4206-055001-000000 RFQ
|
|||||||
| 4206-060001-000000 | 77 | 83 | 104 | RLK 110-60 x 77 | RINGSPANN | Request a quote | |
|
4206-060001-000000 RFQ
|
|||||||
| 4206-065001-000000 | 84 | 83 | 111 | RLK 110-65 x 84 | RINGSPANN | Request a quote | |
|
4206-065001-000000 RFQ
|
|||||||
| 4206-070001-000000 | 90 | 101 | 119 | RLK 110-70 x 90 | RINGSPANN | Request a quote | |
|
4206-070001-000000 RFQ
|
|||||||
| 4206-075001-000000 | 95 | 101 | 126 | RLK 110-75 x 95 | RINGSPANN | Request a quote | |
|
4206-075001-000000 RFQ
|
|||||||
| 4206-080001-000000 | 100 | 106 | 131 | RLK 110-80 x 100 | RINGSPANN | Request a quote | |
|
4206-080001-000000 RFQ
|
|||||||
| 4206-085001-000000 | 106 | 106 | 137 | RLK 110-85 x 106 | RINGSPANN | Request a quote | |
|
4206-085001-000000 RFQ
|
|||||||
| 4206-090001-000000 | 112 | 106 | 143 | RLK 110-90 x 112 | RINGSPANN | Request a quote | |
|
4206-090001-000000 RFQ
|
|||||||
| 4206-095001-000000 | 120 | 106 | 153 | RLK 110-95 x 120 | RINGSPANN | Request a quote | |
|
4206-095001-000000 RFQ
|
|||||||
| 4206-100001-000000 | 125 | 114 | 162 | RLK 110-100 x 125 | RINGSPANN | Request a quote | |
|
4206-100001-000000 RFQ
|
|||||||
| 4206-110001-000000 | 140 | 140 | 180 | RLK 110-110 x 140 | RINGSPANN | Request a quote | |
|
4206-110001-000000 RFQ
|
|||||||
| 4206-120001-000000 | 155 | 140 | 198 | RLK 110-120 x 155 | RINGSPANN | Request a quote | |
|
4206-120001-000000 RFQ
|
|||||||
