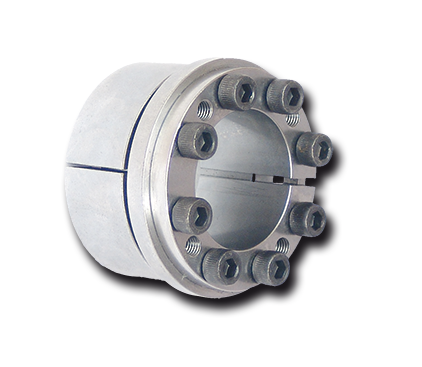

Ringspann Locking Elements RLK 131
The RLK 131 type Cone Clamping Elements center the hub to the shaft. They feature high transmissible torques and there is no axial displacement between the hub and shaft during the clamping procedure due to the fixed backstop point The product transmissible torque is from 350 Nm up to 43,000 Nm. The shaft diameter is between 20 mm and 180 mm.
HVH Industrial works with manufacturers' specialized engineering teams to meet our customer's requirements and the highest quality standards.
If you have any questions, write us via live chat (one of our team members will answer your questions), call, or send us a quote request. The HVH team is always ready to help you.
or
Requesting ... File size should not exceed 20 MB.
Ringspann Locking Elements RLK 131
The RLK 131 type Cone Clamping Elements center the hub to the shaft. They feature high transmissible torques and there is no axial displacement between the hub and shaft during the clamping procedure due to the fixed backstop point The product transmissible torque is from 350 Nm up to 43,000 Nm. The shaft diameter is between 20 mm and 180 mm.
HVH Industrial works with manufacturers' specialized engineering teams to meet our customer's requirements and the highest quality standards.
If you have any questions, write us via live chat (one of our team members will answer your questions), call, or send us a quote request. The HVH team is always ready to help you.
|
MPN
|
d mm
|
d1 mm
|
l1 mm
|
l2 mm
|
type
|
Brand
|
Price
|
Actions
|
|---|---|---|---|---|---|---|---|---|
| 4204-020101-000000 | 47 | 53 | 26 | 31 | RLK 131-20 x 47 | RINGSPANN | Request a quote | |
|
4204-020101-000000 RFQ
|
||||||||
| 4204-022101-000000 | 47 | 53 | 26 | 31 | RLK 131-22 x 47 | RINGSPANN | Request a quote | |
|
4204-022101-000000 RFQ
|
||||||||
| 4204-024101-000000 | 50 | 56 | 26 | 31 | RLK 131-24 x 50 | RINGSPANN | Request a quote | |
|
4204-024101-000000 RFQ
|
||||||||
| 4204-025101-000000 | 50 | 56 | 26 | 31 | RLK 131-25 x 50 | RINGSPANN | Request a quote | |
|
4204-025101-000000 RFQ
|
||||||||
| 4204-028101-000000 | 55 | 61 | 26 | 31 | RLK 131-28 x 55 | RINGSPANN | Request a quote | |
|
4204-028101-000000 RFQ
|
||||||||
| 4204-030101-000000 | 55 | 61 | 26 | 31 | RLK 131-30 x 55 | RINGSPANN | Request a quote | |
|
4204-030101-000000 RFQ
|
||||||||
| 4204-032101-000000 | 60 | 66 | 26 | 31 | RLK 131-32 x 60 | RINGSPANN | Request a quote | |
|
4204-032101-000000 RFQ
|
||||||||
| 4204-035101-000000 | 60 | 66 | 26 | 31 | RLK 131-35 x 60 | RINGSPANN | Request a quote | |
|
4204-035101-000000 RFQ
|
||||||||
| 4204-038101-000000 | 65 | 71 | 26 | 31 | RLK 131-38 x 65 | RINGSPANN | Request a quote | |
|
4204-038101-000000 RFQ
|
||||||||
| 4204-040101-000000 | 65 | 71 | 26 | 31 | RLK 131-40 x 65 | RINGSPANN | Request a quote | |
|
4204-040101-000000 RFQ
|
||||||||
| 4204-042101-000000 | 75 | 81 | 30 | 35 | RLK 131-42 x 75 | RINGSPANN | Request a quote | |
|
4204-042101-000000 RFQ
|
||||||||
| 4204-045101-000000 | 75 | 81 | 30 | 35 | RLK 131-45 x 75 | RINGSPANN | Request a quote | |
|
4204-045101-000000 RFQ
|
||||||||
| 4204-048101-000000 | 80 | 86 | 30 | 35 | RLK 131-48 x 80 | RINGSPANN | Request a quote | |
|
4204-048101-000000 RFQ
|
||||||||
| 4204-050101-000000 | 80 | 86 | 30 | 35 | RLK 131-50 x 80 | RINGSPANN | Request a quote | |
|
4204-050101-000000 RFQ
|
||||||||
| 4204-055101-000000 | 85 | 91 | 30 | 35 | RLK 131-55 x 85 | RINGSPANN | Request a quote | |
|
4204-055101-000000 RFQ
|
||||||||
| 4204-060101-000000 | 90 | 96 | 30 | 35 | RLK 131-60 x 90 | RINGSPANN | Request a quote | |
|
4204-060101-000000 RFQ
|
||||||||
| 4204-065101-000000 | 95 | 101 | 30 | 35 | RLK 131-65 x 95 | RINGSPANN | Request a quote | |
|
4204-065101-000000 RFQ
|
||||||||
| 4204-070101-000000 | 110 | 119 | 40 | 45 | RLK 131-70 x 110 | RINGSPANN | Request a quote | |
|
4204-070101-000000 RFQ
|
||||||||
| 4204-075101-000000 | 115 | 124 | 40 | 45 | RLK 131-75 x 115 | RINGSPANN | Request a quote | |
|
4204-075101-000000 RFQ
|
||||||||
| 4204-080101-000000 | 120 | 129 | 40 | 45 | RLK 131-80 x 120 | RINGSPANN | Request a quote | |
|
4204-080101-000000 RFQ
|
||||||||
| 4204-085101-000000 | 125 | 134 | 40 | 45 | RLK 131-85 x 125 | RINGSPANN | Request a quote | |
|
4204-085101-000000 RFQ
|
||||||||
| 4204-090101-000000 | 130 | 139 | 40 | 45 | RLK 131-90 x 130 | RINGSPANN | Request a quote | |
|
4204-090101-000000 RFQ
|
||||||||
| 4204-095101-000000 | 135 | 144 | 40 | 45 | RLK 131-95 x 135 | RINGSPANN | Request a quote | |
|
4204-095101-000000 RFQ
|
||||||||
| 4204-100101-000000 | 145 | 155 | 45 | 52 | RLK 131-100 x 145 | RINGSPANN | Request a quote | |
|
4204-100101-000000 RFQ
|
||||||||
| 4204-110101-000000 | 155 | 165 | 45 | 52 | RLK 131-110 x 155 | RINGSPANN | Request a quote | |
|
4204-110101-000000 RFQ
|
||||||||
| 4204-120101-000000 | 165 | 175 | 45 | 52 | RLK 131-120 x 165 | RINGSPANN | Request a quote | |
|
4204-120101-000000 RFQ
|
||||||||
| 4204-130101-000000 | 180 | 188 | 45 | 52 | RLK 131-130 x 180 | RINGSPANN | Request a quote | |
|
4204-130101-000000 RFQ
|
||||||||
| 4204-140101-000000 | 190 | 199 | 50 | 58 | RLK 131-140 x 190 | RINGSPANN | Request a quote | |
|
4204-140101-000000 RFQ
|
||||||||
| 4204-150101-000000 | 200 | 209 | 50 | 58 | RLK 131-150 x 200 | RINGSPANN | Request a quote | |
|
4204-150101-000000 RFQ
|
||||||||
| 4204-160101-000000 | 210 | 219 | 50 | 58 | RLK 131-160 x 210 | RINGSPANN | Request a quote | |
|
4204-160101-000000 RFQ
|
||||||||
| 4204-170101-000000 | 225 | 234 | 50 | 58 | RLK 131-170 x 225 | RINGSPANN | Request a quote | |
|
4204-170101-000000 RFQ
|
||||||||
| 4204-180101-000000 | 235 | 244 | 50 | 58 | RLK 131-180 x 235 | RINGSPANN | Request a quote | |
|
4204-180101-000000 RFQ
|
||||||||
