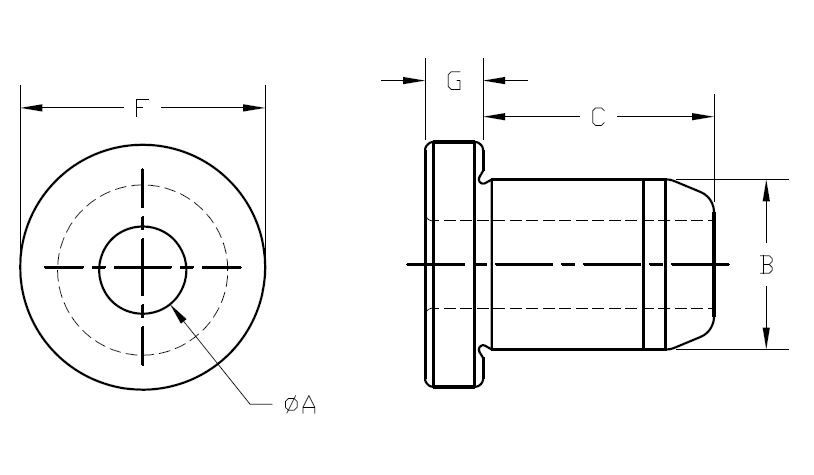

H Type Head Press-Fit
Type H bushings are permanently pressed into the jig plate. H Bushings are similar to P bushings, but with a head to resist heavy axial loads. H bushings are generally used for single-operation drilling or reaming when you do not expect to replace bushings during the tooling's lifetime. The head of type H bushings can be left exposed or recessed by counterboring the installation hole.
Check the Smith Bearing ABC Product Catalog to select the product that best suits your application.
